IVMS 4200 no live view but Hikvision app works fine

[The Blobby]

HI All

new here so hop you can help.

Got my hands on a new Hikvision setup
DS 7604Ni K1 4P
2 x DS 2CD2555FWD-IS
2 x DS 2CD2185FWD I

I have installed these and they are very good quality and were easy to fit. i have had some issues though and i will address this one first before i ask advice on the other problem.
I have the installed hikvision app and that works great I can view the four cameras on there or do so individually and i can also review recorded footage which has already proved interesting.

i haver also installed ivms 4200 and i can see the NVR and i can adjust all the settings from here i cannot however see an cameras in live view. i also logged into the ip address through safari and the same there no live view. I have looked through some of the posts on here and foloowed them through but have not been able to get it working. I have re installed this 3 times but still no luck.
Any ideas?



[Phil]

Have you installed the latest Hikvision web components for Mac?



[The Blobby]

Hi Phil

been through the lot and re downloaded and installed. still no luck with it. the app works fine but its not giving me any live view in IVMS. should i try to connect on IVMS via hik connect?



[Phil]

should i try to connect on IVMS via hik connect?

I don't really understand this question?
Is the Mac that you are running Safari / iVMS on at the same site / same network as the NVR?
Can you see live video in Safari?
What version of Apple's OS are you running please?



[The Blobby]

Hi Phil

yes safari and ivms are both on the same network,, i am running high siera v10.13.5.

when adding a connection in ivms you can choose to use HIk Connect instead of using your IP/Domain. i have tried adding this today but cant get it to work.

when i attempt to view i get the message live view failed.



[The Blobby]

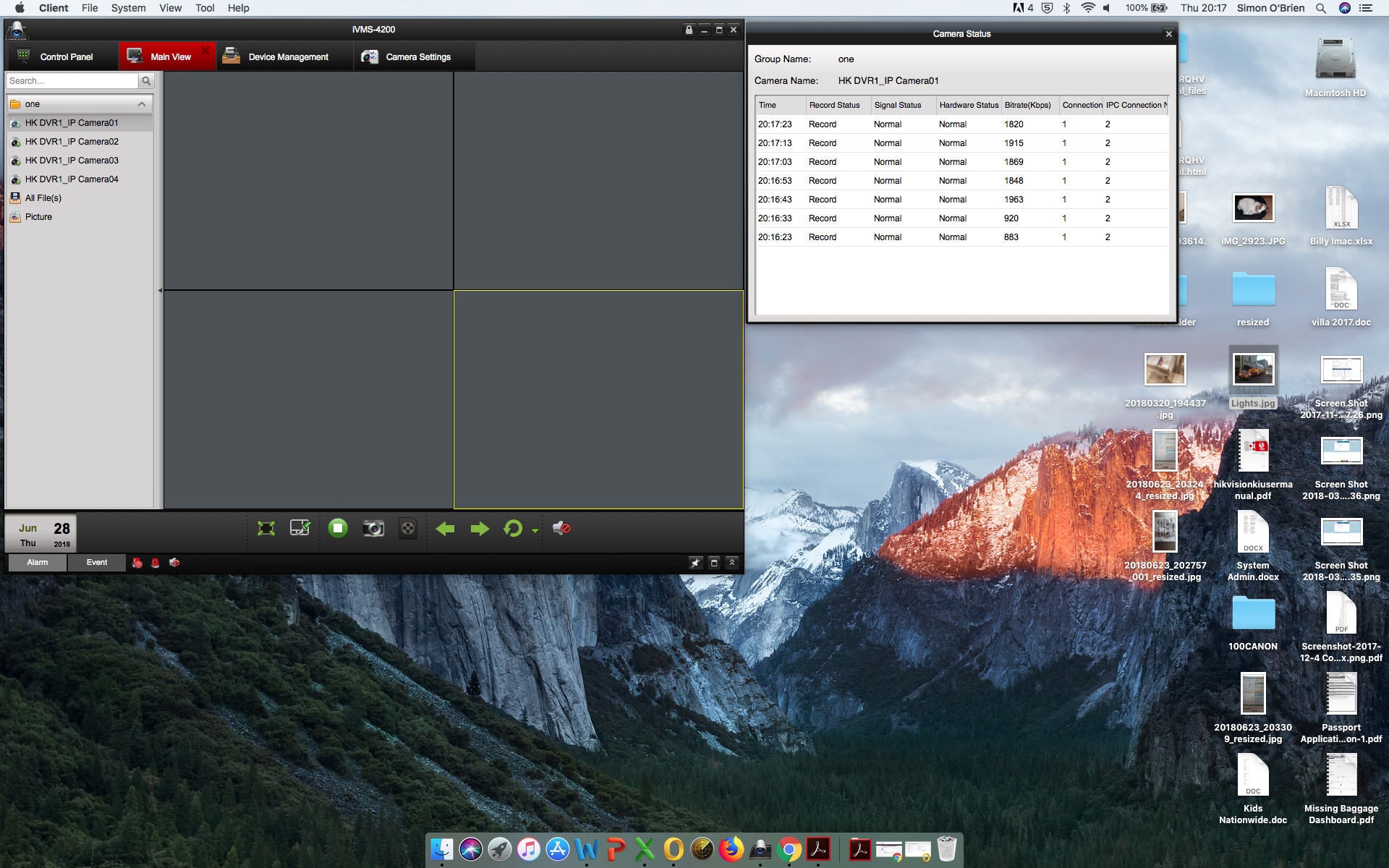

thought i would add a screenshot of IVMS and the camera staus showing thats working and connected but no images are being shown



[Phil]

When you have one of the quadrants selected (highlighted in yellow), what happens if you double-click on a camera in the list at the left?



[The Blobby]

Sadly nothing happens, it says at the bottom that the camera is connected, it seems that i have full access to the nvr as i can change settings etc from here but still no view. i wonder if this is just some setting within the mac. incidently i downloaded and installed ivms
4500 onto the ipad works fine and the app on my phone is android both work fine including playback.
