Setting the IR cut filter

[Systems]

How do I manually set the IR cut filter on a DS-2CD2385G1-I Hikvision IP camera so it switches at a set time and changes in the ambient lighting will not turn the cut filter on or off.



[Dan]

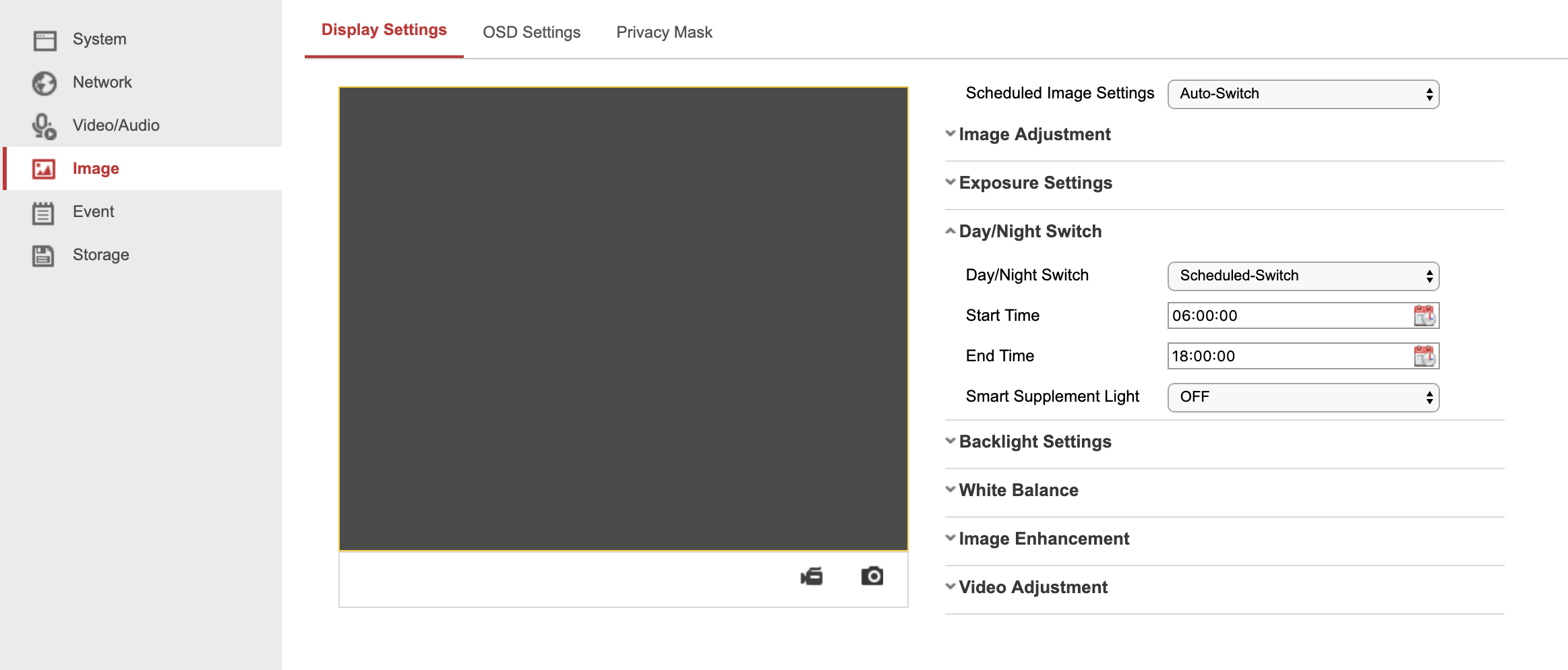

The IR switch settings should be under the image settings (see screenshot below) all you have to do is change Auto to Scheduled-Switch and then set the timers for when you want the camera to switch in and out of IR night mode.



[Systems]

Thanks for the prompt reply. I can’t find the menu in the NVR ‘image’ menu, would I need to connect the camera directly to the network to see it ?

The IR switch settings should be under the image settings (see screenshot below) all you have to do is change Auto to Scheduled-Switch and then set the timers for when you want the camera to switch in and out of IR night mode.

View attachment 2972​



[Dan]

No, you should be able to access any directly connected camera by using the Virtual Host setting, this creates a virtual link that lets you access the settings of individual cameras that are directly connected to the PoE ports on the NVR.
