Using an existing cat5 cable for cctv?

[Dangee21]

Hello ladies and gentlemen

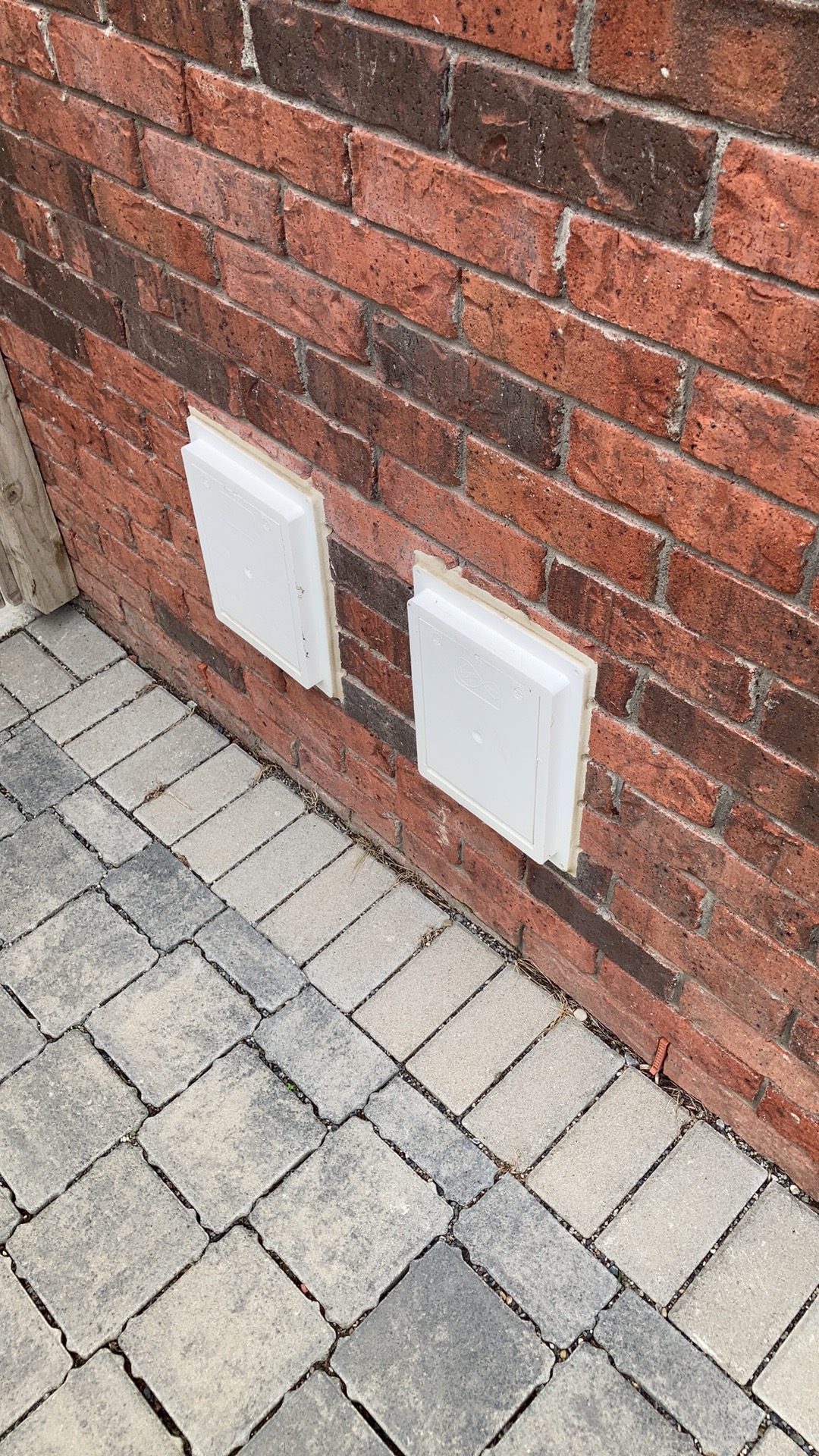

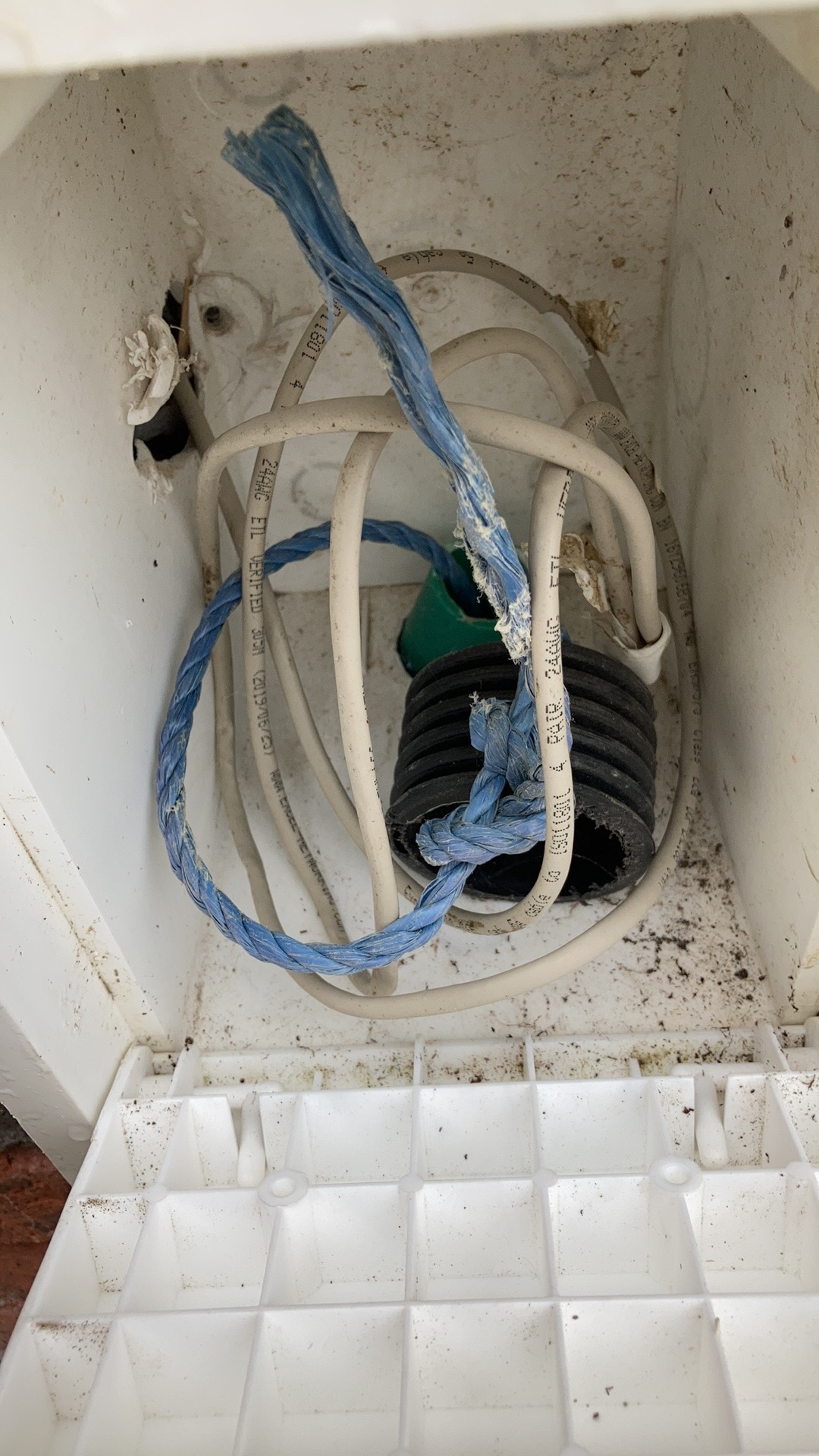

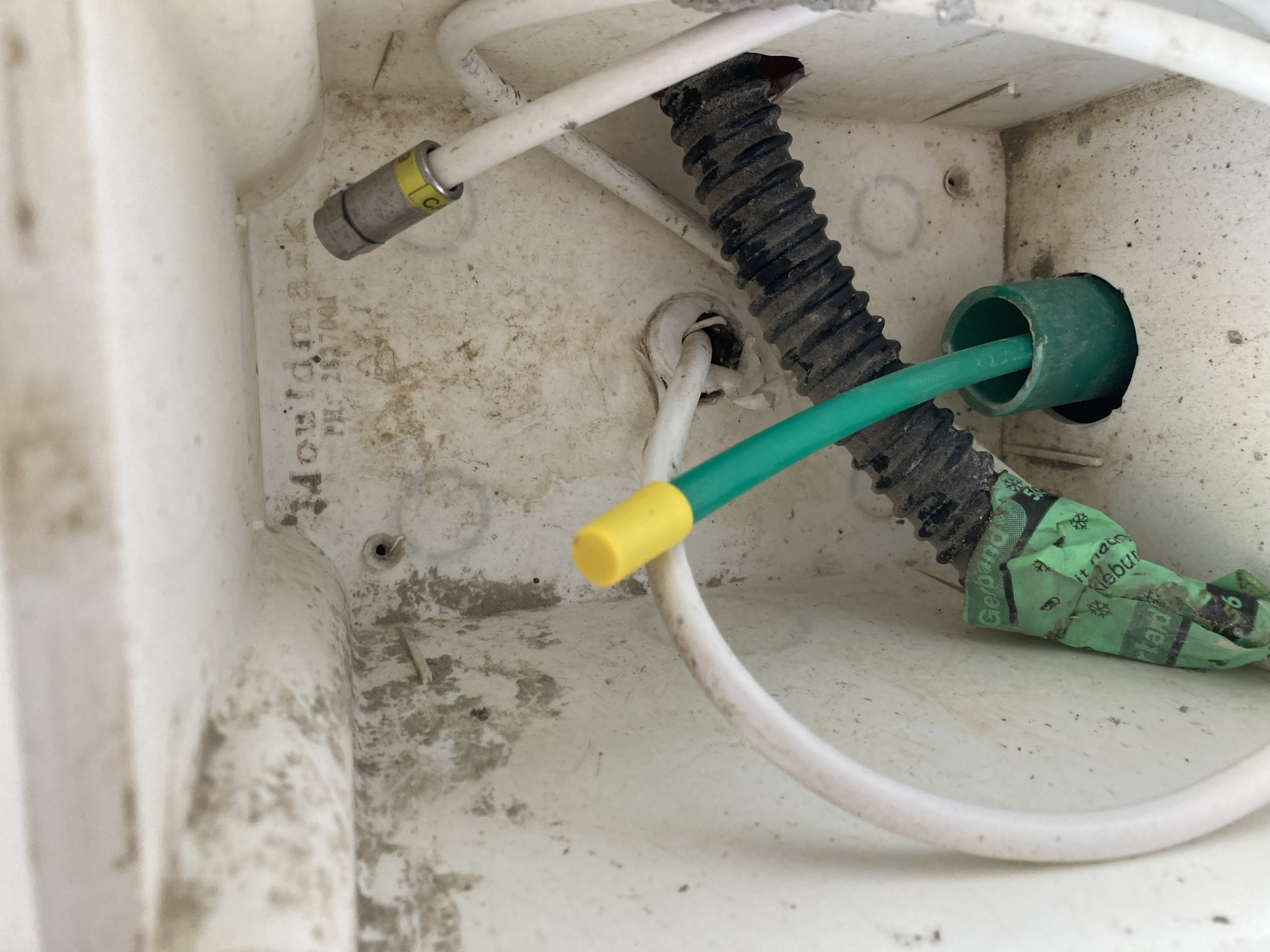

My new build house has a spare cat5e cable in an etu box on the side of my house. I would like to use it to for two cctv cameras I’m thinking of running it up the side of a drain pipe and connect two cameras.
would this work?


Thanks



[Phil]

Possibly.
It's a network cable.
You'll need devices either end.
If 2 cams via one cable, then you'll likely need a gadget at the camera end to allow both to use the single cable.



[Dangee21]

Is running cat5 low to the ground a security risk? Do pros ever run the cable low? I’m thinking someone could cut it?



[Kyle]

Hi @Dangee21

It potentially is, yes - you would need to mount each camera to a junction box, run the Cat5e into the side entry gland, and then use a 20mm conduit to protect the cable.

This thread has some discussion on it:

How to use Tower conduit to HIK junction box

Hi all What size tower conduit do I need or what connector do I need to join it to a HIK junction box please? Do most of you use conduit to hide external cables on residential and commercial installs or only at low levels and not too worried about the higher level cameras? I'm trying to work...

www.use-ip.co.uk



[Dangee21]

Thanks for the reply’s lads much appreciated
