How do I connect this POE injector to my IP camera?

[Fadburty]

Hi,

I've ordered the below

NUOLUX DC 48V 0.5A Injector Power Supply Over Ethernet Adapter with UK Plug NUOLUX DC 48V 0.5A Injector Power Supply Over Ethernet Adapter with UK Plug: Amazon.co.uk: Electronics

Do I connect the IP camera to this plug, and then one ethernet cable to a network switch or the NVR?

When I connect the IP camera to POE injector to the network switch .....it doesn't connect to the internet or NVR?



[Phil]

Connect a standard network cable from the POE injector port marked POE to the camera.
And another network cable from the port marked LAN to an available port on your router or network switch.

Your router should then allocate a network IP address to the new camera.
You will need to manually add the camera (at its new IP address) to your NVR manually.



[Fadburty]

Hi Phil,

I have managed to do that but having issues setting up the IP camera on the NVR.

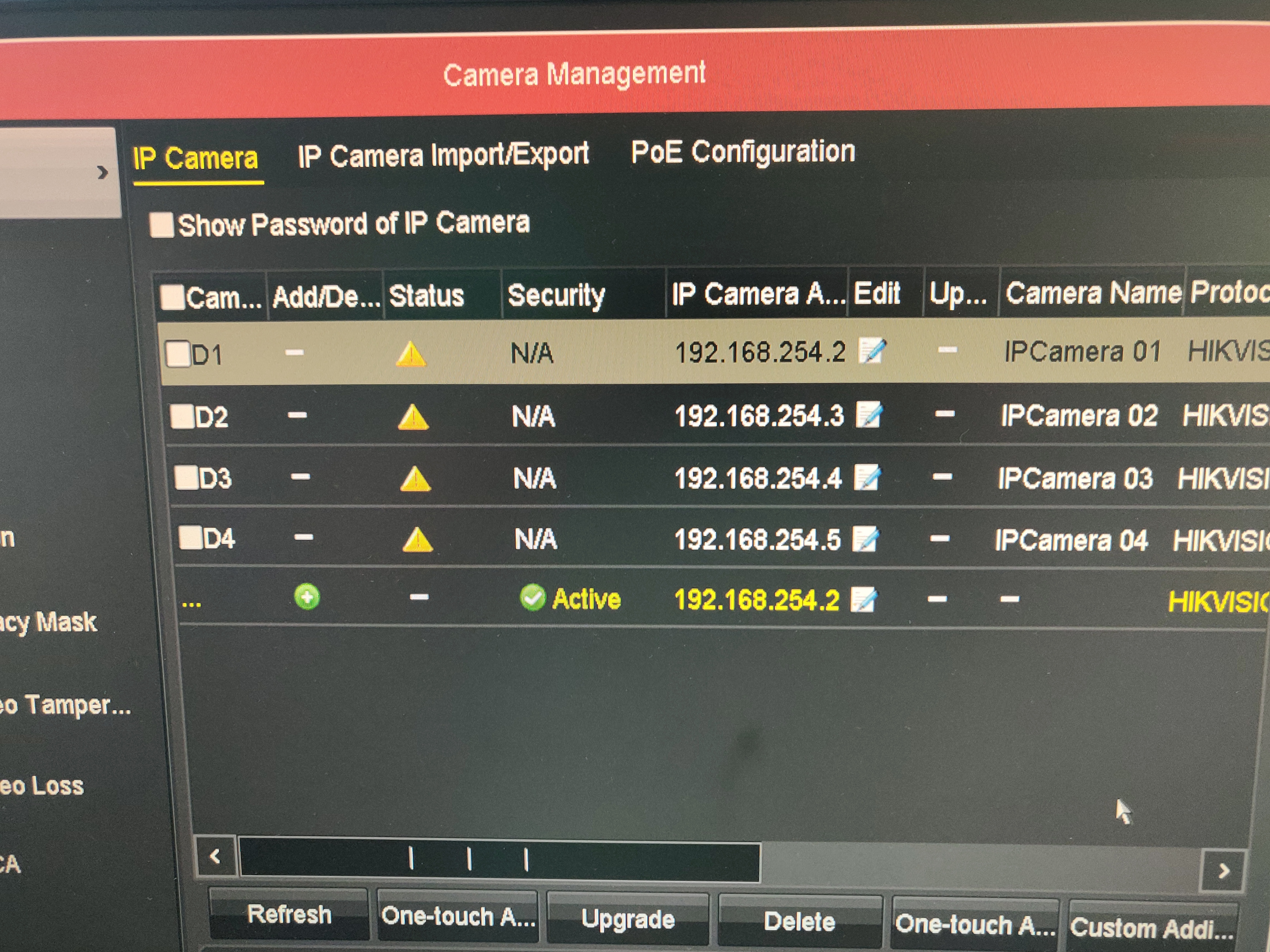

When I change the first camera from Manual to plug and play I can see the camera which is now been connect to the POE. However I can't view anything.

I guess how do I identify the new IP address?



[Fadburty]

Ok, I may have cracked it Phil. I located the IP address of the the camera as now it's connected to the Network switch. There was a no IP allocated.

I downloaded SDAP. Clicked on the IP Camera and enabled DHCP. (I suppose I could have given it a static IP address)

I put the new IP address in the D1 slot and it's working.

Now hopefully it should send emails with a picture to my email address!!!
