Hik-Connect Playback quality issues on my iPad?

[AlanW]

I have an Acusense system with 4 cameras of 8MP model DS-2CD2387G2-LU 2.8mm, and 2 cameras 5MP model IPC-T259H 2.8mm, and an NVR model DS-7608NXI-I2/8P/S with 6 TB disk.

System is set up from a laptop and from a browser using the IP address.

All other actions are done on an ipad.


All cameras display clearly in HD from about 6pm until about 7am next day.

I will ignore the 2 x 5MP cameras (no. 2 & 3) as they seem to be OK.
Likewise, whatever we do, the Kitchen camera which is number 6 (8MP camera) always displays in Live and playback in HD so no problem.


During the day select live view for all cameras, all 8MP cameras are displaying blurry screens, presumably in “Basic”?

Checking Notifications:

• Front camera no.1 won't play, it just displays like a still photograph.
• Drive camera no.5 seems OK today but isn't always.
• Back of garage no.4 starts OK then stops, then runs several seconds later, then stops and displays "Device decoding timed out. Check the device network connection". Select live view from this notification, searches, then gives same error message.

Selected playback for 11am yesterday:

• Drive (cam 5) & Kitchen (cam 6) playing.
• Front (cam 1) and Back of garage (cam 4) then displays "90%+" in centre of screens then stops and gives “Device decoding time out message”.

At about 1pm today selected all live view:

• All Ok while showing in 4 quarters of the screen.
• When select them to full screen, the Kitchen plays in HD but all others will only play in Basic.

Any help would be appreciated.



[AlanW]

I have an Acusense system with 4 cameras of 8MP model DS-2CD2387G2-LU 2.8mm, and 2 cameras 5MP model IPC-T259H 2.8mm, and an NVR model DS-7608NXI-I2/8P/S with 6 TB disk.

System is set up from a laptop and from a browser using the IP address.

All other actions are done on an ipad.


All cameras display clearly in HD from about 6pm until about 7am next day.

I will ignore the 2 x 5MP cameras (no. 2 & 3) as they seem to be OK.
Likewise, whatever we do, the Kitchen camera which is number 6 (8MP camera) always displays in Live and playback in HD so no problem.


During the day select live view for all cameras, all 8MP cameras are displaying blurry screens, presumably in “Basic”?

Checking Notifications:

• Front camera no.1 won't play, it just displays like a still photograph.
• Drive camera no.5 seems OK today but isn't always.
• Back of garage no.4 starts OK then stops, then runs several seconds later, then stops and displays "Device decoding timed out. Check the device network connection". Select live view from this notification, searches, then gives same error message.

Selected playback for 11am yesterday:

• Drive (cam 5) & Kitchen (cam 6) playing.
• Front (cam 1) and Back of garage (cam 4) then displays "90%+" in centre of screens then stops and gives “Device decoding time out message”.

At about 1pm today selected all live view:

• All Ok while showing in 4 quarters of the screen.
• When select them to full screen, the Kitchen plays in HD but all others will only play in Basic.

Any help would be appreciated.

Looks like I’m replying to myself. It looks like I’ve solved my issue so I thought I would share it.
Firstly, because the front camera is the important one, I swapped the cables in the NVR between camera 6 (the kitchen) and camera 1 (Front).
As only 3 out of the 6 cameras would allow me to set up “line crossing” I reduced the resolution down until they let me set them up.
By doing this it cured the problem whereby the live views were not displaying in HD.

I am happy with this now, but I would be most grateful if someone can tell me what I have to do to be able to increase the resolution?



[Phil]

Is this a new system?
e.g. has all worked well before?



[AlanW]

Is this a new system?
e.g. has all worked well before?

Hi Phil, I had it upgraded about a year ago from DS 7208 to DS 7608 and added 6 colour cameras. We thought it was great because it was almost like daylight on the cameras at night. It was about 6 months ago that we really noticed that the quality during the day was poor. Due to other reasons as well we upgraded our internet to 1000GB hoping it would help. That's it.



[JB1970]

I have an Acusense system with 4 cameras of 8MP model DS-2CD2387G2-LU 2.8mm, and 2 cameras 5MP model IPC-T259H 2.8mm, and an NVR model DS-7608NXI-I2/8P/S with 6 TB disk.

System is set up from a laptop and from a browser using the IP address.

All other actions are done on an ipad.


All cameras display clearly in HD from about 6pm until about 7am next day.

I will ignore the 2 x 5MP cameras (no. 2 & 3) as they seem to be OK.
Likewise, whatever we do, the Kitchen camera which is number 6 (8MP camera) always displays in Live and playback in HD so no problem.


During the day select live view for all cameras, all 8MP cameras are displaying blurry screens, presumably in “Basic”?

Checking Notifications:

• Front camera no.1 won't play, it just displays like a still photograph.
• Drive camera no.5 seems OK today but isn't always.
• Back of garage no.4 starts OK then stops, then runs several seconds later, then stops and displays "Device decoding timed out. Check the device network connection". Select live view from this notification, searches, then gives same error message.

Selected playback for 11am yesterday:

• Drive (cam 5) & Kitchen (cam 6) playing.
• Front (cam 1) and Back of garage (cam 4) then displays "90%+" in centre of screens then stops and gives “Device decoding time out message”.

At about 1pm today selected all live view:

• All Ok while showing in 4 quarters of the screen.
• When select them to full screen, the Kitchen plays in HD but all others will only play in Basic.

Any help would be appreciated.

On the NVR go to Settings > Network > Advanced > Platform Access. Disable 'Adaptive Bitrate Streaming'. It may be called 'Sub stream rate adaption'



[AlanW]

On the NVR go to Settings > Network > Advanced > Platform Access. Disable 'Adaptive Bitrate Streaming'. It may be called 'Sub stream rate adaption'

Hello Guru, thanks for your reply. Unfortunately I can't follow your menu. I am using my browser with an Acusense system with DS-7608.
The closest I can get to yours is "Configuration>Network>Advanced Configuration" but I can't find any ref to "Adaptive Bitrate Streaming" or "Sub stream rate adaption". I have also tried to follow it on iVMS-4200 without success.



[JB1970]

Hello Guru, thanks for your reply. Unfortunately I can't follow your menu. I am using my browser with an Acusense system with DS-7608.
The closest I can get to yours is "Configuration>Network>Advanced Configuration" but I can't find any ref to "Adaptive Bitrate Streaming" or "Sub stream rate adaption". I have also tried to follow it on iVMS-4200 without success.

Within 'Advanced Configuration'. You should see the page or tab for Platform Access (where Hik-Connect is set up). Depending on the version of firmware you're on, that page may have the option I detailed (it can also be called 'Low Bitrate Mode'). That is something that can mess up the image when watching in 'Basic' as it reprograms the sub stream settings, dropping the bit rate too low.

Failing that, for any image issues you'd need to screenshot the video parameters page for each camera for both main stream and sub stream as that would indicate if everything is set up well.



[AlanW]

Within 'Advanced Configuration'. You should see the page or tab for Platform Access (where Hik-Connect is set up). Depending on the version of firmware you're on, that page may have the option I detailed (it can also be called 'Low Bitrate Mode'). That is something that can mess up the image when watching in 'Basic' as it reprograms the sub stream settings, dropping the bit rate too low.

Failing that, for any image issues you'd need to screenshot the video parameters page for each camera for both main stream and sub stream as that would indicate if everything is set up well.

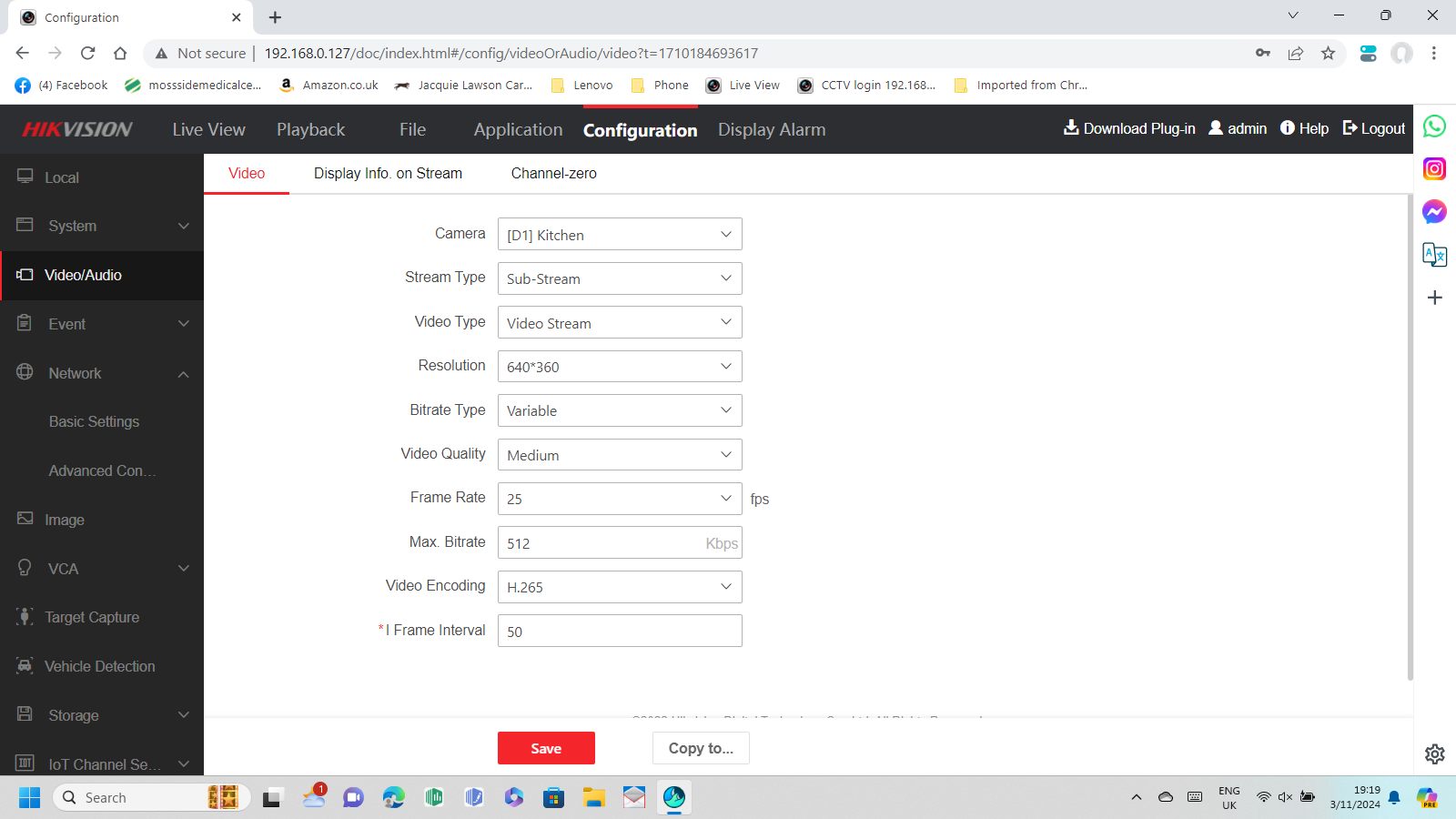

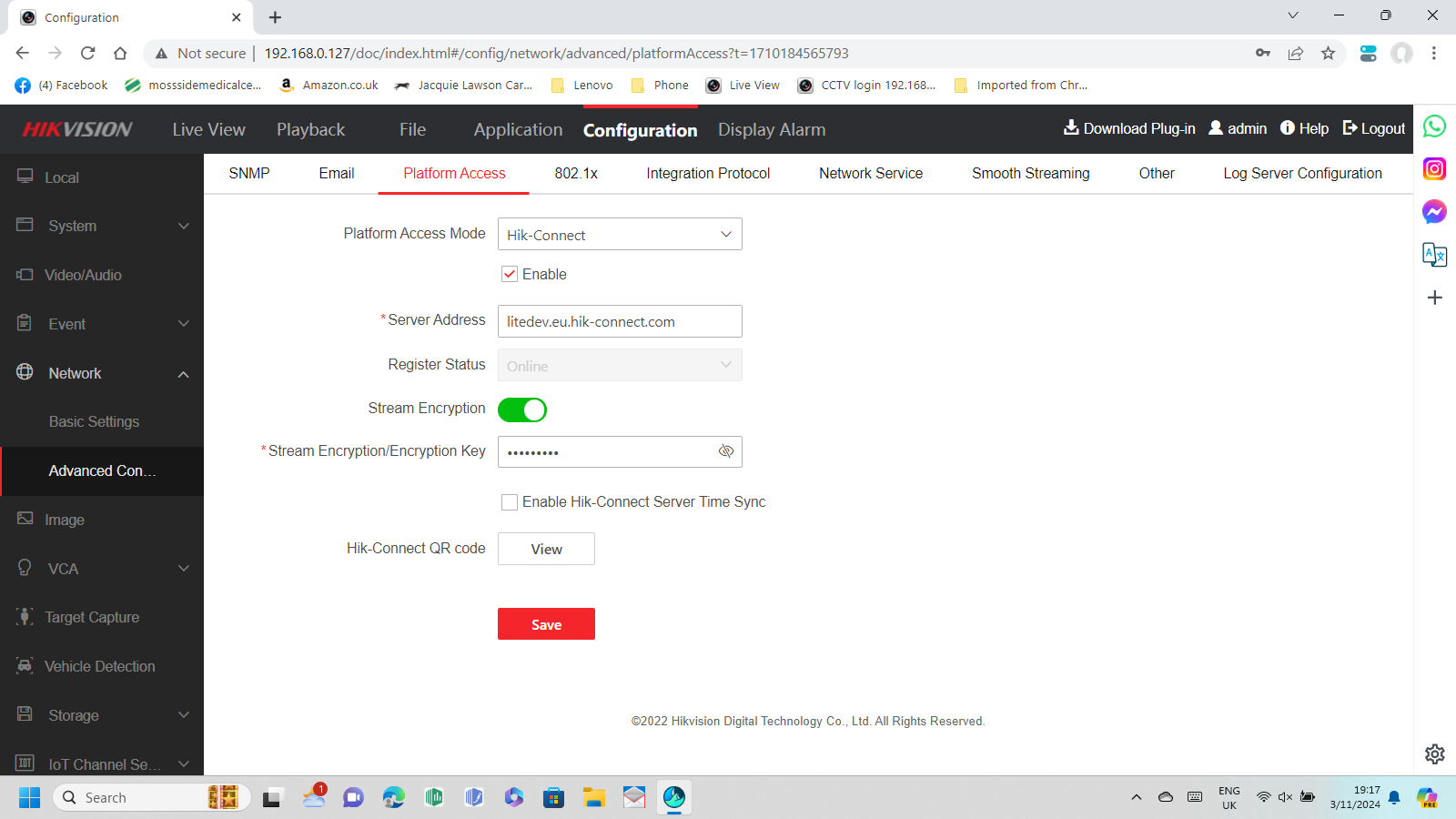

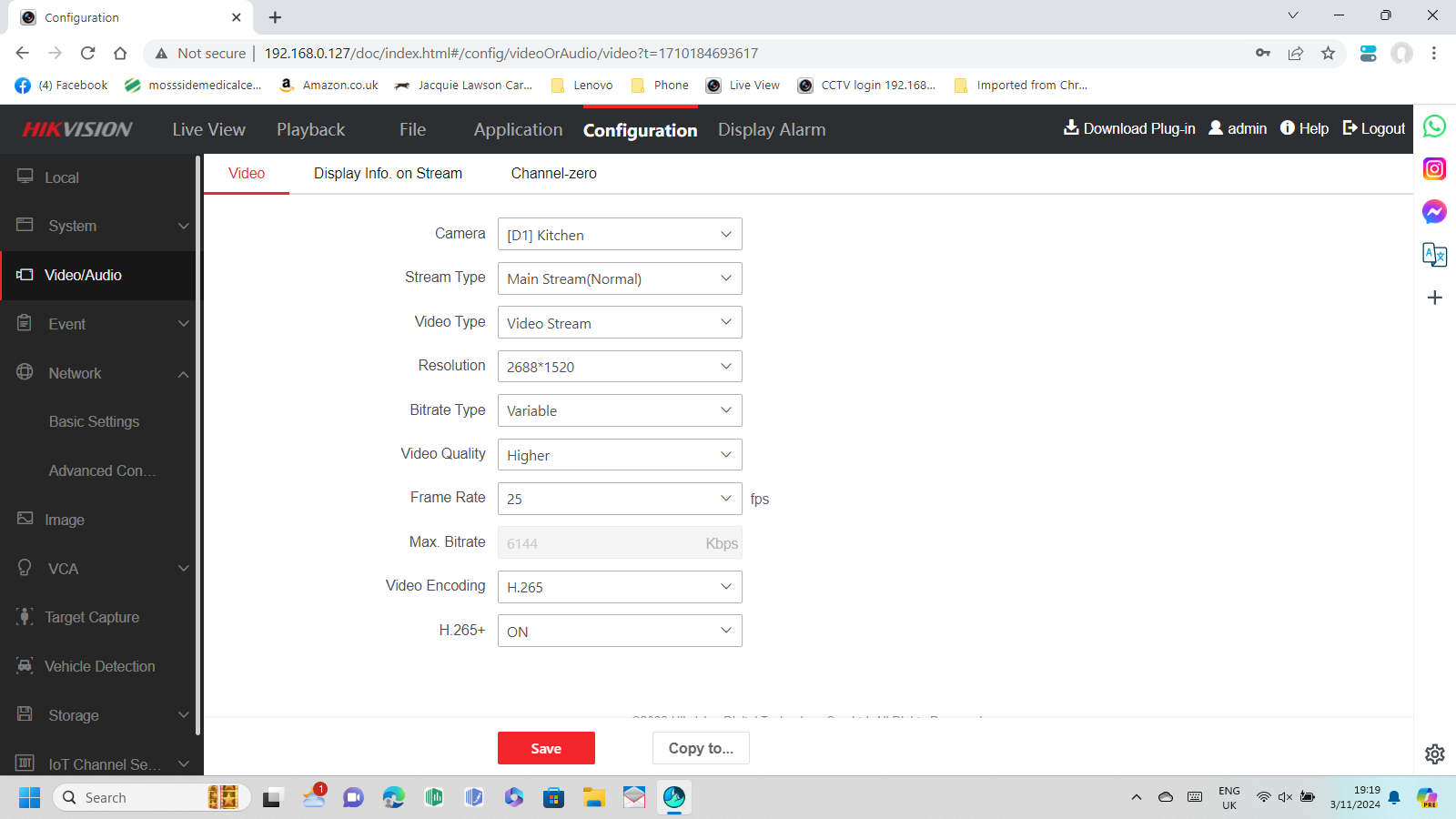

Hi Guru, I have attached my Platform Access screenshot, and my screenshots for both Main screen & Sub screens. This shows the Kitchen, but all the other cameras are the same set up. Is there anything obvious?
