Trying to setup motion detection

daneboomerang

Active Member
Messages
29
Points
3
Basically I want to record continuously between 08:00 and 18:00 and then ONLY on motion detection at all other times.

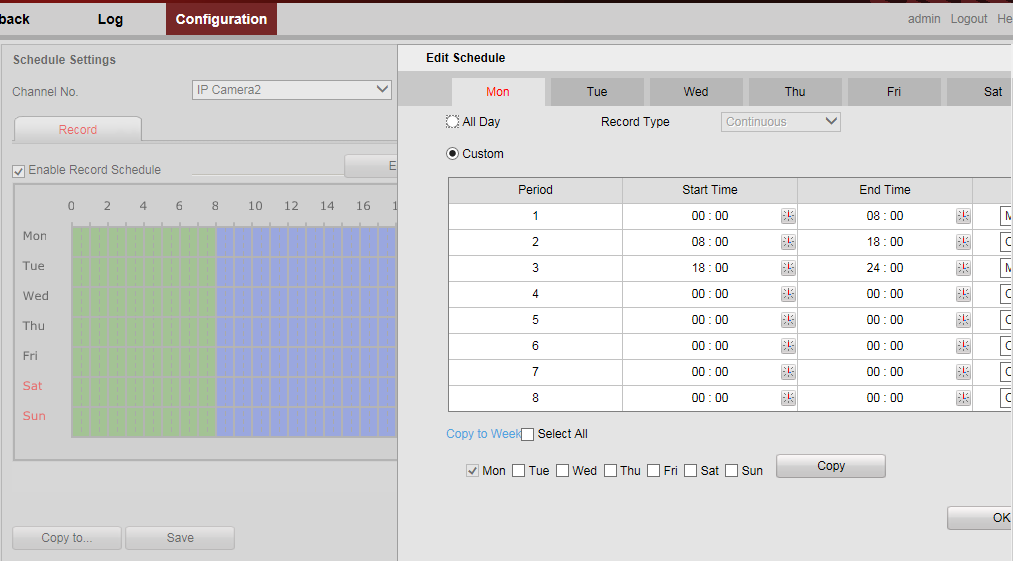

I thought this would be relatively easy to set up. I went into the NVR and went onto the "schedule settings" tab, ticked "enable record schedule", clicked edit, clicked custom and setup my schedule for "motion detection" between 00:00 and 08:00, continuous between 08:00 and 18:00 and motion detection again between 18:00 and 00:00. However when I look in my playback view there is just a gap from 18:00-08:00 and no motion events?
Do I need to set some settings on the "motion detection" tab? "enable motion detection" is turned on already? I've done nothing in the arming schedule however, as I couldn't tell what that did as opposed to the record schedule?

Thanks


Attachments

  • dasdas.png
    32.2 KB · Views: 168
